HB Range.
The HB horse float range, a traditional design which delivers the highest levels of comfort and safety for your horse.
The horse float range is built with an aluminium tubular frame of six vertical pillars in each corner, with additional strength provided by horizontal extrusions along the length of the trailer & a steel tubular frame supporting the composite roof. The concealed frame provides a large side panel area resulting in a stylish looking trailer which is more automotive than agricultural in appearance.
The trailer range features a powder coated aluminium frame, lowered aluminium skirt running around the front of the trailer chassis, with sides and ramps made using composite aluminium/plywood side panels. All models feature a pair of side windows and have a large inspection window which allows more daylight into the trailer. Centre partitions (double float only) and breast and breeching bars are fitted as standard.
Available in the HB403, HB506 and HB511 sizes the trailer can be ordered with the choice of right or left hand front ramp, or no front ramp.
The HB403 is a single float suitable for the transport of a horse of up to 16.2hh and offers more stall width than either of the two double horse floats.
The HB506 and HB511 double horse floats are ideal for transporting two horses up to 16.2hh/17.2hh respectively.
Key Features
The Key Features of the HB Range.
Aluminium Floor & Rubber Matting
Comes with our Aluminium Flooring that is then covered with Ribbed-Rubber floor matting.
Security Marking
The Serial Number is either cut into the Drawbar or engraved onto the Chassis of the trailer.
Breast Bar Release System
In the event of an unfortunate incident, our Breast Bar mounts can be quickly and easily released using the Wheel Wrench.
Roof Vent
Our HB Trailers are available with a Pop-Up Roof Mounted Vent that keeps your Horses cooler in the warmer months.
Quick Release Door Catches
Our HB Trailers come fitted with Quick-Release Latches on the Top Opening Doors for Quick and Easy opening and Latching closed.
Rear Positioned Spare Wheel
The Spare wheel is mounted to the rear of the Trailer for convenience.

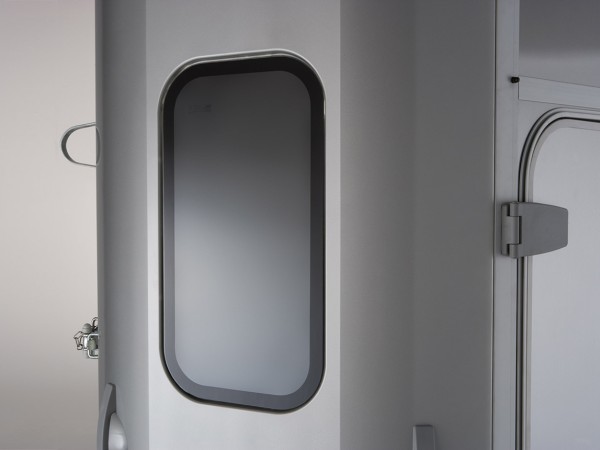

Front Panel & Window
Comes with a Large Front Window as standard with an optional guard.
Lockable Grooms Door
Providing secure access to your horses and to the front of the trailer.
Side Marker Lights
Our HB Trailer comes with Side Marker Lights installed for excellent all-round visibility.
Interior Light
Our HB comes fitted with a handy interior light so that loading and unloading in the dark is not an issue.
Side Windows
Our HB Range of Trailers can also be supplied with Side Windows.
Front Ramp Options
Our Front Ramp can be specified at the time of order as either Left Hand or Right Hand.
Alloy Wheels
All Genuine IWT Wheel Assemblies, Wheel Centres and Tyres go through an extensive selection and testing process and are fully compliant with all current road regulations. These are OEM wheel products which we have put through their paces at a leading UK test centre to make certain that they are comfortable on a wide range of terrains, over a prolonged period of time. As such you can be sure that your horse will experience a smooth, safe ride with any of our wheel assemblies fitted.
6 Spoke Silver
8 Spoke Diamond
8 Spoke Silver
Wheel Trims
Alloy Wheels
Give your horse float even more impact by adding a set of exclusive alloy wheels with Ifor Williams Trailers branded centres (four per trailer). Choose from three designs, 6-spoke silver alloys, 8-spoke silver alloys and 8-spoke diamond cut alloys.
Accessories
Optional Accessories to make your horse float even more user-friendly.
TRAILER COVER - BLUE
Our Ifor Williams Branded Trailer Cover offers protection to your HB float while it is parked to help protect it from the elements.
WHEEL CHOCK KIT
Wheel Chocks are used to ensure that the trailer does not roll or move and should be placed at the front and back of a tyre. They should be placed flat against the tyre and pushed tight against the tyre treads, and always used in pairs.
HB511 HEAD PARTITION
Our Head Partition offers that additional guarding to help keep your horses separated whilst loaded into the float.
WINDOW PROTECTION BARS
Our Window Protection Bars add that extra security for your HB Float.
WHEEL TRIM
You can complement the look of our HB Floats with our Wheel Trim Set that adds that "Touch of Class".
HIGH LEVEL REAR BRAKE LIGHT
We offer the addition of a High-Level Brake Light that ensures that you can be seen whilst braking if traffic behind obscures your low level brake lights.
TRAILER AID RAMP
Trailer Aid is a “Must Have” to make the changing of a wheel much easier, without the requirement of a heavy jack. Simply pull the good wheel onto the Trailer Aid and this will raise the wheel that needs replacing off the ground. When you have finished changing the wheel, simply reverse the trailer back down the Trailer Aid Ramp.
DOOR MOUNTED TACK PACK
If you want to keep your valuable Tack in tip-top condition, then why not include our door mounted Tack Pack that provides a conveniently accessibly way to store your Tack.
REMOVABLE TACK PACK
If our Door Mounted Tack Pack does not offer enough storage, or you don't want to be carrying heavy Tack from the stable to the Trailer, then our Removable Tack Pack is a great alternative. It can be easily loaded inside your stable and then rolled up the side ramp and safely stowed to protect all of your equipment, getting you out riding sooner.
WIRELESS TRAILER CAMERA
Wireless trailer camera provides a live view of the inside of the float from the comfort of your towing vehicle.
ALLOY WHEEL
Our HB Range of Floats can be fitted with our Ifor Williams Alloy Wheels, adding that "Touch of Class".
HORSE FLOAT PROP STANDS
Why not add extra stability to your trailer during loading with the addition of our Manual Prop Stands, that is Bolted to the rear of the Trailer Chassis, offering extra support.
Coupling Lock
This premium lock is engineered to keep your trailer safe with Heavy-duty toughened steel for durability, high-security barrel lock for ultimate peace of mind, certified Sold Secure Gold Standard rating and weatherproof design with corrosion resistance and a convenient cover
Accessories
Optional Accessories to make your horse float even more user-friendly.
TRAILER COVER - BLUE
Our Ifor Williams Branded Trailer Cover offers protection to your HB float while it is parked to help protect it from the elements.
WHEEL CHOCK KIT
Wheel Chocks are used to ensure that the trailer does not roll or move and should be placed at the front and back of a tyre. They should be placed flat against the tyre and pushed tight against the tyre treads, and always used in pairs.
HB511 HEAD PARTITION
Our Head Partition offers that additional guarding to help keep your horses separated whilst loaded into the float.
WINDOW PROTECTION BARS
Our Window Protection Bars add that extra security for your HB Float.
WHEEL TRIM
You can complement the look of our HB Floats with our Wheel Trim Set that adds that "Touch of Class".
HIGH LEVEL REAR BRAKE LIGHT
We offer the addition of a High-Level Brake Light that ensures that you can be seen whilst braking if traffic behind obscures your low level brake lights.
TRAILER AID RAMP
Trailer Aid is a “Must Have” to make the changing of a wheel much easier, without the requirement of a heavy jack. Simply pull the good wheel onto the Trailer Aid and this will raise the wheel that needs replacing off the ground. When you have finished changing the wheel, simply reverse the trailer back down the Trailer Aid Ramp.
DOOR MOUNTED TACK PACK
If you want to keep your valuable Tack in tip-top condition, then why not include our door mounted Tack Pack that provides a conveniently accessibly way to store your Tack.
REMOVABLE TACK PACK
If our Door Mounted Tack Pack does not offer enough storage, or you don't want to be carrying heavy Tack from the stable to the Trailer, then our Removable Tack Pack is a great alternative. It can be easily loaded inside your stable and then rolled up the side ramp and safely stowed to protect all of your equipment, getting you out riding sooner.
WIRELESS TRAILER CAMERA
Wireless trailer camera provides a live view of the inside of the float from the comfort of your towing vehicle.
ALLOY WHEEL
Our HB Range of Floats can be fitted with our Ifor Williams Alloy Wheels, adding that "Touch of Class".
HORSE FLOAT PROP STANDS
Why not add extra stability to your trailer during loading with the addition of our Manual Prop Stands, that is Bolted to the rear of the Trailer Chassis, offering extra support.
Coupling Lock
This premium lock is engineered to keep your trailer safe with Heavy-duty toughened steel for durability, high-security barrel lock for ultimate peace of mind, certified Sold Secure Gold Standard rating and weatherproof design with corrosion resistance and a convenient cover
Gallery
HB506 Silver
HB403 Red
HB511 Graphite Grey
HB506 Bala Blue
HB403 Black
HB506 Silver
HB511 Silver
HB506 Blue
HB403 Graphite Grey
HB506 Red
Gallery
HB506 Silver
HB403 Red
HB511 Graphite Grey
HB506 Bala Blue
HB403 Black
HB506 Silver
HB511 Silver
HB506 Blue
HB403 Graphite Grey
HB506 Red
Specifications
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| HB403 | 155R13C/165R13C | 1600kg | 767kg | 3.08m | 1.30m | 4.36m | 1.76m |
| HB506 | 165R13C | 2600kg | 920kg | 3.16m | 1.67m | 4.30m | 2.13m |
| HB511 | 165R13C | 2700kg | 1000kg | 3.52m | 1.79m | 4.65m | 2.26m |
