TA510.
Ranging from 10 foot up to 16 foot, and with three height options, the TA510 can be used for a wide range of livestock in various conditions.
Key Features
Key Features of the TA510 Livestock Trailer.
Livestock Front Inspection Door
Trailer comes with a Split Front Inspection Door so that you Livestock can be easily checked.
Lockable Coupling Head
The Coupling Head can be locked using the High-Security Lock Barrel.
Ramp Gates
Fitted with our Standard Loading Ramp System and Livestock Gates, to help load safely and easily.
Spare Wheel & Carrier
"If you want extra peace of mind with your trailer or you regularly travel long distances with your Trailer, then why not have the addition of a Spare Wheel Carrier and Spare Wheel to get yourself back on the road quickly."
Livestock Ramp
Trailer comes fitted with our Standard Loading Ramp System and Livestock Gates.
Easy Load Ramp
Unique to Ifor Williams the factory fitted EasyLoad™ ramp and folding deck system simplifies the loading of the upper deck without the need to manhandle ramps or livestock.

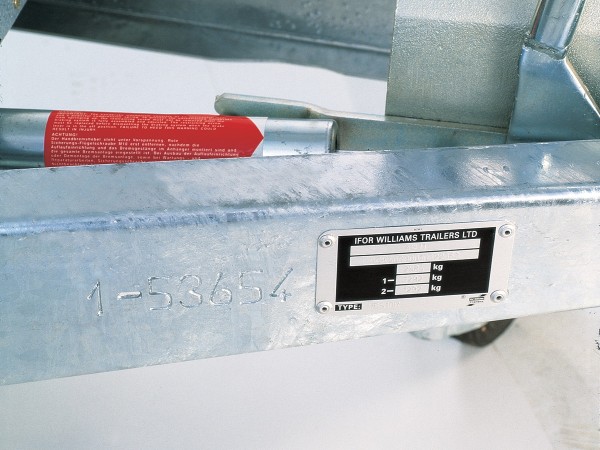

Security Marking
The Serial Number is either cut into the Drawbar or engraved onto the Chassis of the trailer.
Axle Beam with Leaf Spring Suspension
Comes as standard with our Proven Beam Axle and Paraflex™ Spring System.
All New 16ft Livestock Trailers
All New 16ft Livestock Trailers
Experience in Action
-
- /
-
Accessories
Optional Accessories to enhance your Livestock Trailer.
CENTRE PARTITION
With the inclusion of our Centre Partition Kit, your Livestock TA510 can also be used to transport horses. (Only available with 7ft Headroom)
SUMP TANK KIT TA510
This option is designed to collect all of the waste that is produced by your livestock whilst they are being transported inside the trailer. It is manufactured from durable plastic that does not corrode due to the acidic nature of the animal waste.
Fold-down Front Flap
To help keep your livestock cool in the summer months, you have the option of adding an Opening Front Flap that allows cooling air to pass through the trailer, keeping your livestock cool and healthy.
Hinged Wind Deflector
New for 2024 is our updated Wind Deflector which offer better aerodynamic performance to your TA with a noticeable saving in fuel costs.
Coupling Lock
Our Ifor Williams Coupling Lock fits neatly around the Coupling Head to make the theft of your trailer much more difficult. Manufactured from High-Grade Steels and a durable Powder Coated Finish. The Lock is a High Security Lock which features an Anti-Drilling Barrel. For extra piece of mind we also supply an additional High Security Barrel which will fit into a Lockable Coupling Head so that one key will open both the Coupling Lock and the Coupling Head Barrel.
Accessories
Optional Accessories to enhance your Livestock Trailer.
CENTRE PARTITION
With the inclusion of our Centre Partition Kit, your Livestock TA510 can also be used to transport horses. (Only available with 7ft Headroom)
SUMP TANK KIT TA510
This option is designed to collect all of the waste that is produced by your livestock whilst they are being transported inside the trailer. It is manufactured from durable plastic that does not corrode due to the acidic nature of the animal waste.
Fold-down Front Flap
To help keep your livestock cool in the summer months, you have the option of adding an Opening Front Flap that allows cooling air to pass through the trailer, keeping your livestock cool and healthy.
Hinged Wind Deflector
New for 2024 is our updated Wind Deflector which offer better aerodynamic performance to your TA with a noticeable saving in fuel costs.
Coupling Lock
Our Ifor Williams Coupling Lock fits neatly around the Coupling Head to make the theft of your trailer much more difficult. Manufactured from High-Grade Steels and a durable Powder Coated Finish. The Lock is a High Security Lock which features an Anti-Drilling Barrel. For extra piece of mind we also supply an additional High Security Barrel which will fit into a Lockable Coupling Head so that one key will open both the Coupling Lock and the Coupling Head Barrel.
Specifications
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| TA510 10’x6’ H/R | 175/75R16C | 3500kg | 970kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x6’ H/R | 6.50R16C | 3500kg | 970kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x7’ H/R | 175/75R16C | 3500kg | 995kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 10’x7’ H/R | 6.50R16C | 3500kg | 995kg | 3.08m | 1.75m | 4.60m | 2.30m |
| TA510 12’x6’ H/R | 175/75R16C | 3500kg | 1105kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x6’ H/R | 6.50R16C | 3500kg | 1105kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x7’ H/R | 175/75R16C | 3500kg | 1130kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 12’x7’ H/R | 6.50R16C | 3500kg | 1130kg | 3.74m | 1.75m | 5.17m | 2.30m |
| TA510 14’x6’ H/R | 6.50R16C | 3500kg | 1155kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 14’x6’ H/R (Tri-Axle) | 175/75R16C | 3500kg | 1265kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510 14’x7’ H/R | 6.50R16C | 3500kg | 1185kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 14’x7’ H/R (Tri-Axle) | 175/75R16C | 3500kg | 1295kg | 4.32m | 1.75m | 5.83m | 2.30m |
| TA510T 16’x4’ (Tri-Axle) | 175/75R16C | 3500kg | 1035kg | 4.93m | 1.75m | 6.45 | 2.3m |
| TA510T 16’x6’ (Tri-Axle) | 175/75R16C | 3500kg | 1400kg | 4.93m | 1.75m | 6.45 | 2.3m |
| TA510T 16’x7’ (Tri-Axle) | 175/75R16C | 3500kg | 1430kg | 4.93m | 1.75m | 6.45 | 2.3m |
