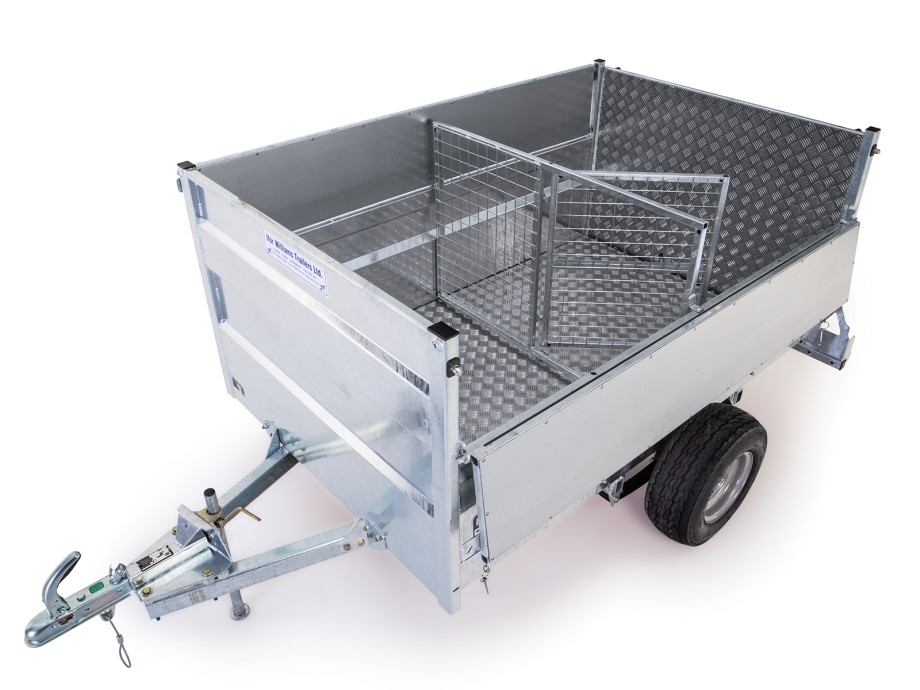

Braked Q.
The Braked Q range includes a braked wheel setup and allows for a greater maximum gross weight carrying capacity. The Braked Q range includes a longer overall length option.
The Braked Q trailer range is available in three different overall lengths of 3.02m, 3.27m or 3.62m. All Braked Q trailers have a maximum gross weight of 1000kg.These trailers are constructed from a robust galvanized steel chassis, and feature tried and tested leaf spring suspension, durable treated timber floor with hardwearing treadplate, ensuring long term durability and ease of use.
A wide range of options are available, such as a roof with rack storage, a number of tie-down points, ramp door or ramp door with integrated stock door, or a side hinging door, internal partition (with integrated door), hinged mesh or hinged solid sides and ramp gates.
Accessories
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
Roof and Rack
Provides additional loading space of up to 50kg, along with multiple tie down points, whilst also providing additional protection to the contents of the trailer.
Hinged Mesh Sides
Increases the secure loading height of the trailer. The mesh sides are ideal for transporting livestock. Integrated hinging further adds to the trailers ease of use.
Hinged Solid Sides
Increases the secure loading height of the trailer. The solid sides are ideal for containing various items whilst providing additional protection from the outside elements. Integrated hinging further adds to the trailers ease of use.
Internal Livestock Partition
Ideal for separating livestock or other items. Includes an integrated door to allow movement of livestock between partitions.
Stock Ramp
Available as a standard ramp or ramp with additional stock door, or as a side hinging door.
Coupling Lock
This premium lock is engineered to keep your trailer safe with Heavy-duty toughened steel for durability, high-security barrel lock for ultimate peace of mind, certified Sold Secure Gold Standard rating and weatherproof design with corrosion resistance and a convenient cover
Accessories
Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering.
Roof and Rack
Provides additional loading space of up to 50kg, along with multiple tie down points, whilst also providing additional protection to the contents of the trailer.
Hinged Mesh Sides
Increases the secure loading height of the trailer. The mesh sides are ideal for transporting livestock. Integrated hinging further adds to the trailers ease of use.
Hinged Solid Sides
Increases the secure loading height of the trailer. The solid sides are ideal for containing various items whilst providing additional protection from the outside elements. Integrated hinging further adds to the trailers ease of use.
Internal Livestock Partition
Ideal for separating livestock or other items. Includes an integrated door to allow movement of livestock between partitions.
Stock Ramp
Available as a standard ramp or ramp with additional stock door, or as a side hinging door.
Coupling Lock
This premium lock is engineered to keep your trailer safe with Heavy-duty toughened steel for durability, high-security barrel lock for ultimate peace of mind, certified Sold Secure Gold Standard rating and weatherproof design with corrosion resistance and a convenient cover
Specifications
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| Q6b | 195/55R10C | 1000kg | 300kg | 1.95m | 1.22m | 3.02m | 1.71m |
| Q7b | 195/55R10C | 1000kg | 315kg | 2.19m | 1.22m | 3.27m | 1.71m |
| Q8b | 195/55R10C | 1000kg | 390kg | 2.51m | 1.45m | 3.62m | 1.95m |
